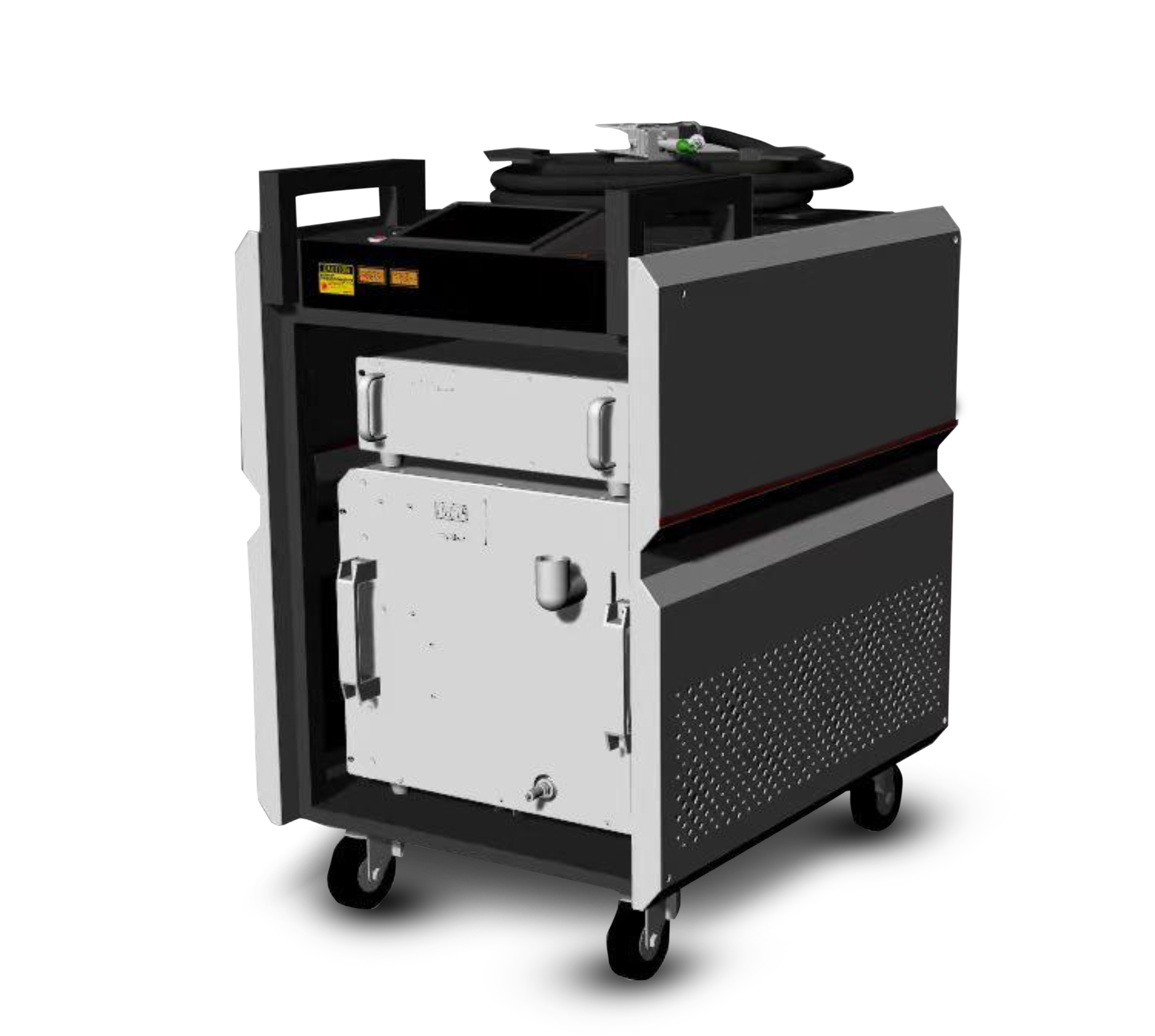

The laser and chiller are separated for better cooling effect; the cleaning head is placed on the top of the machine for easy access, and the optical fiber line is equipped with a protective cover for wear resistance.

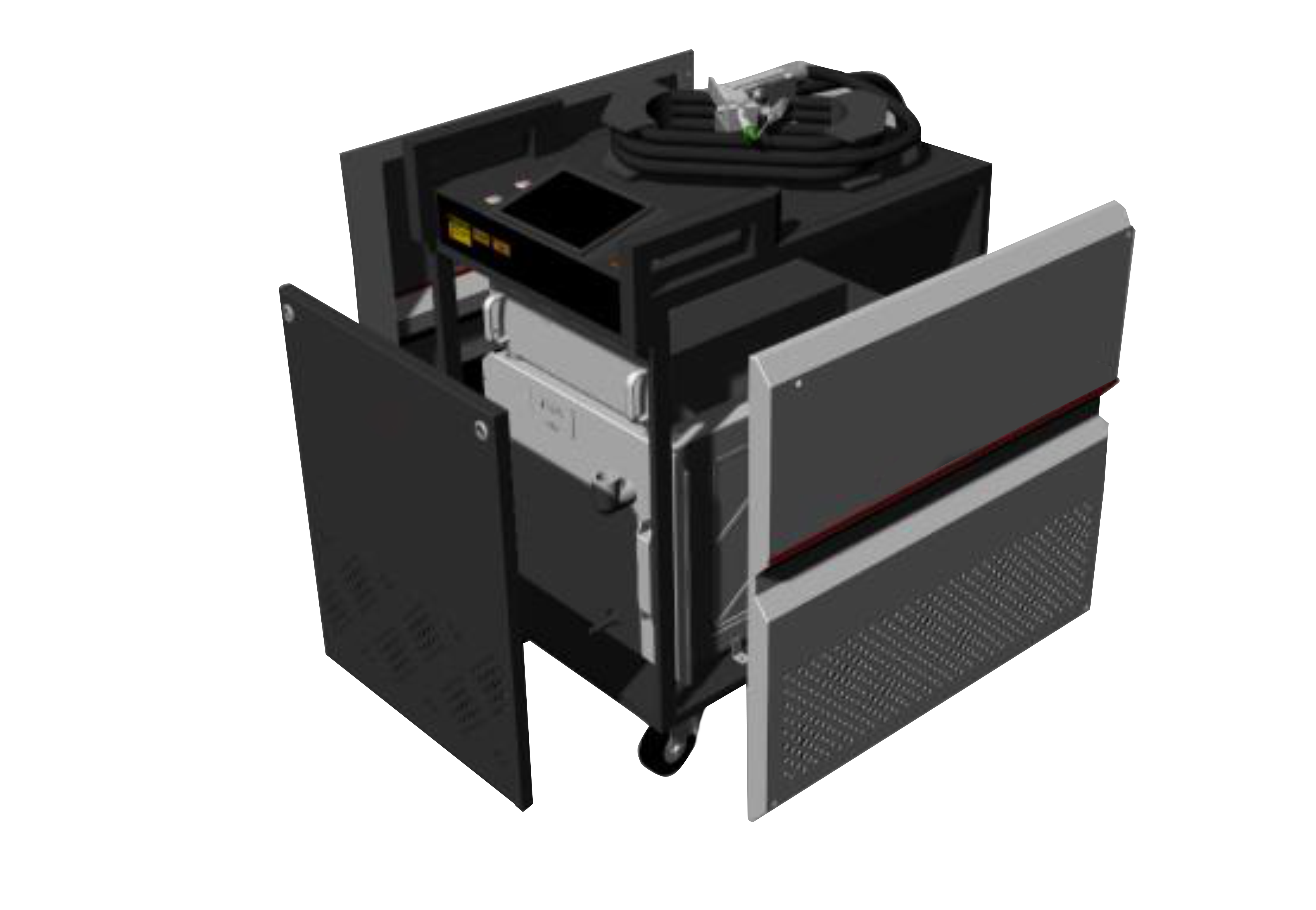

► Optimize the internal structure, use the space rationally, and minimize the transportation cost

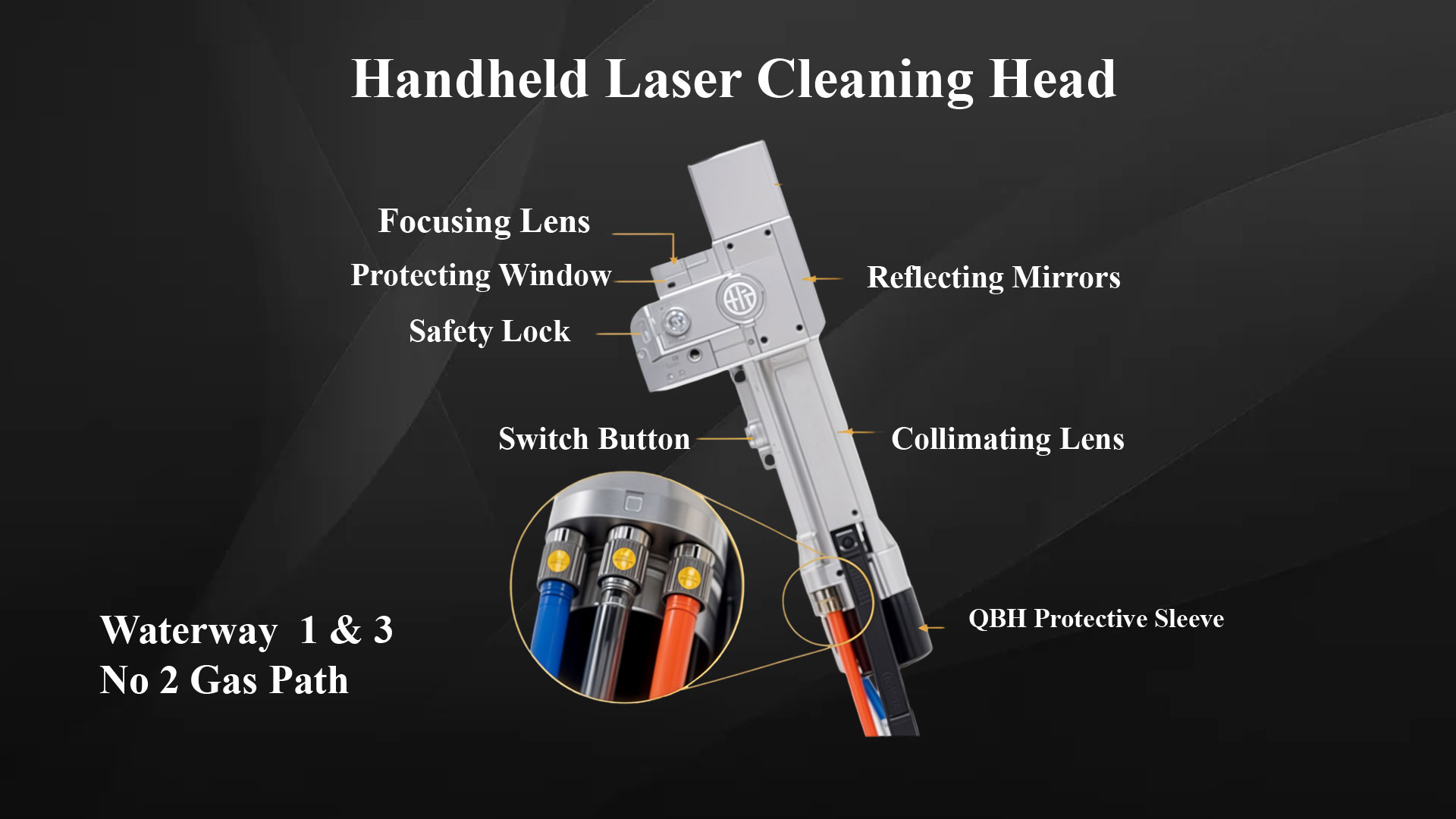

| Product number | SUP22C Handheld laser cleaning head |
| Power level | 3000W |
| Scope of use | <3000W |
| Collimation focal length | 60mm |
| Focus distance | 400/800mm |
| Maximum air pressure | 15Bar |
| Light spot adjustment range | Line 0-300mm |
| Applicable wavelength | 1070nm |
| Weight | 1.0kg |
| Model | SC-1500 | SC-2000 | SC-3000 |
|---|---|---|---|
| Laser wavelength | 1080±10nm | 1080±10nm | 1080±10nm |
| Operating Mode | Continuous / Modulation | ||
| Maximum modulation frequency | 20KHz | ||
| Integrated Cable Length | 10m | ||
| Scan Width | 0-6mm | ||
| Input Voltage | AC220V±10% | AC380V±7% | |
| Visual Positioning | Red dot | ||
| Water cooling | Cooling method (distilled water, deionized water or pure water as medium) | ||
| Package dimensions | 1650×730×1220mm | 1700×730×1220mm | |
| Net weight | 170KG | 195KG | |
| Gross weight | 180KG | 205KG | |
| Water tank capacity | 13L (14-15L of water to be added) | ||
SPARK-ON is a leading name in CNC Fiber Laser Cutting Technology, recognized for its high performance, reliability, and productivity. We offer top-quality machinery supported by major global manufacturers such as IPG, Raycus, Maxphotonics, and N-light. Our commitment to excellent after-sales support and extensive spare parts inventory ensures minimal downtime and maximized profitability. We pride ourselves on delivering cutting-edge technology and exceptional service. Choose SPARK-ON for advanced machinery and reliable support. Your success is our success—let’s achieve it together.
