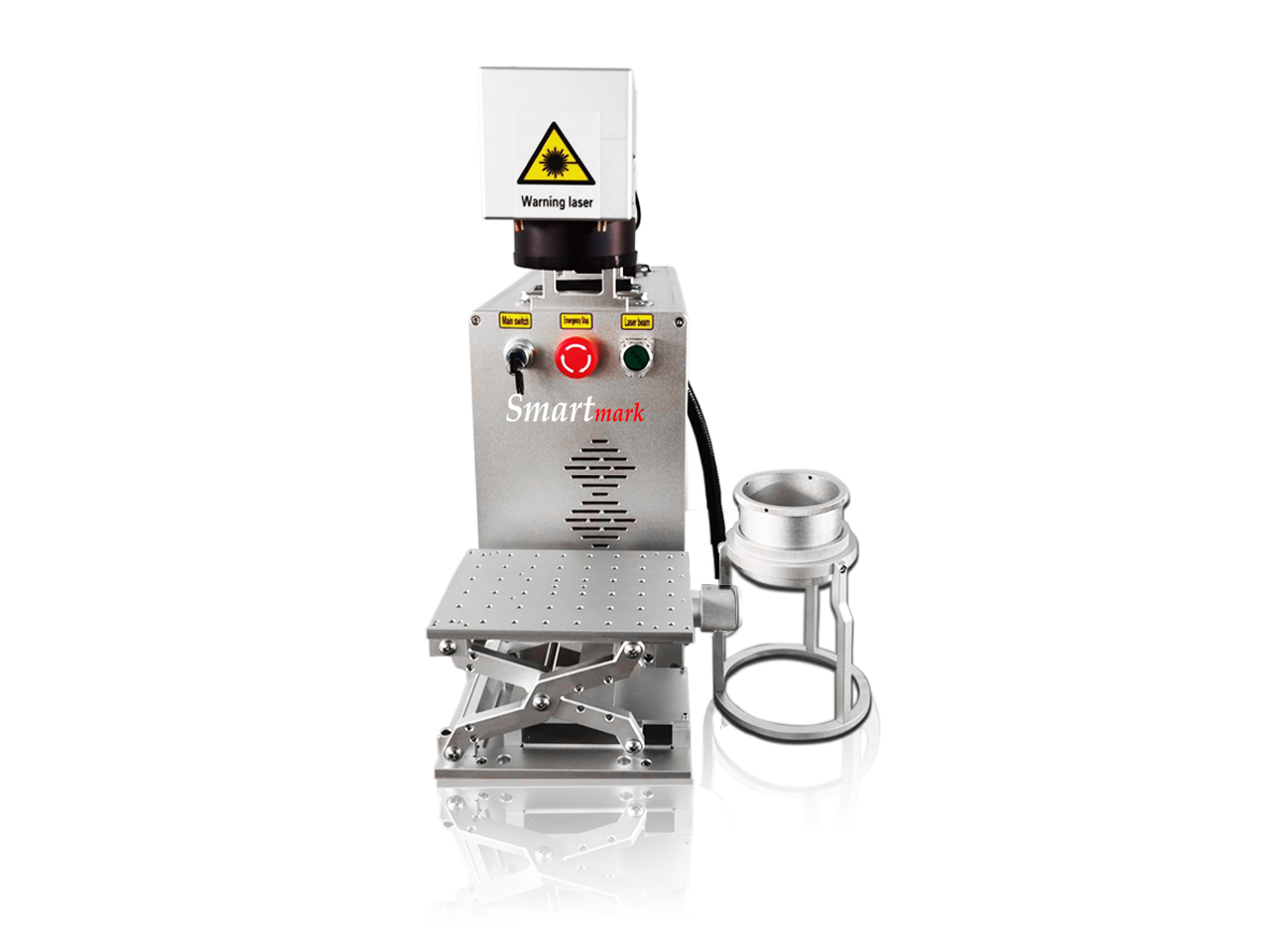

Hand Marking Machine



Highlights


  • ► Hand Marking On A Simple Press

  • ► Excellent To Mark Heavy Equipment Without Moving

  • ► Adjustable Work Table

  • ► Compact And Easy To Handle

  • ► Excellent Hand Fixture For Stable Marking

  • ► Maintenance Free Operation














Features



  • ► Strong Table Base For Heavy Marking

  • ► Complete System With Computer & Desktop

  • ► Easy & Fast Marking With Foot Switch

  • ► Excellence Beam Quality While Marking

  • ► Excellent Reliablity And Stability

  • ► Maintence Free Opertaions














      Application



  • ► Auto Parts

  • ► Hardware

  • ► Watch & Clock

  • ► Marking Anodize

  • ► Painted

  • ► Material

  • ► Serial Number

  • ► Manufactures




  • ► Logo

  • ► Packaging

  • ► Solar Industry

  • ► Medical Device

  • ► Marking Metal & Plastics

  • ► Data Codes

  • ► Materials Flow

  • ► 2D Data Matrix







Technical Parameter



Output Power 20W 30W 50W
Wave Length 1050-1075 nm
Power Adjustment 0 to 100%
Cooling Air Cooled
Min Line Width Min.0.03 mm (Depend On material)
Max Speed Max 10000 mm/s (Max.Linear Speed)
Marking Depth 0.01 0.3 mm (Depend on Material)
Min Character Height 0.5 mm
Marking Range 150 mm X 150 mm (Optional : 100 mm,175 mm,200mm,270mm,300mm)
Support Format PLT,DXF,BMP Files etc. Using SHX TTF Character Storage directly
Single Pusle energy(mj) 1.0@20KHz 1.0@30KHz 1.0@50KHz 1.0@KHz
Repetition Frequency Range 1.6-1000KHz
Output Power Stability <3%
Beam Quailty (M) <2.0
Pulse Width (ns) 4-200
Power Supply AC 220 Volt
Max Power Consumption (laser Source) 220 Watt 250 Watt 350 Watt 500Watt

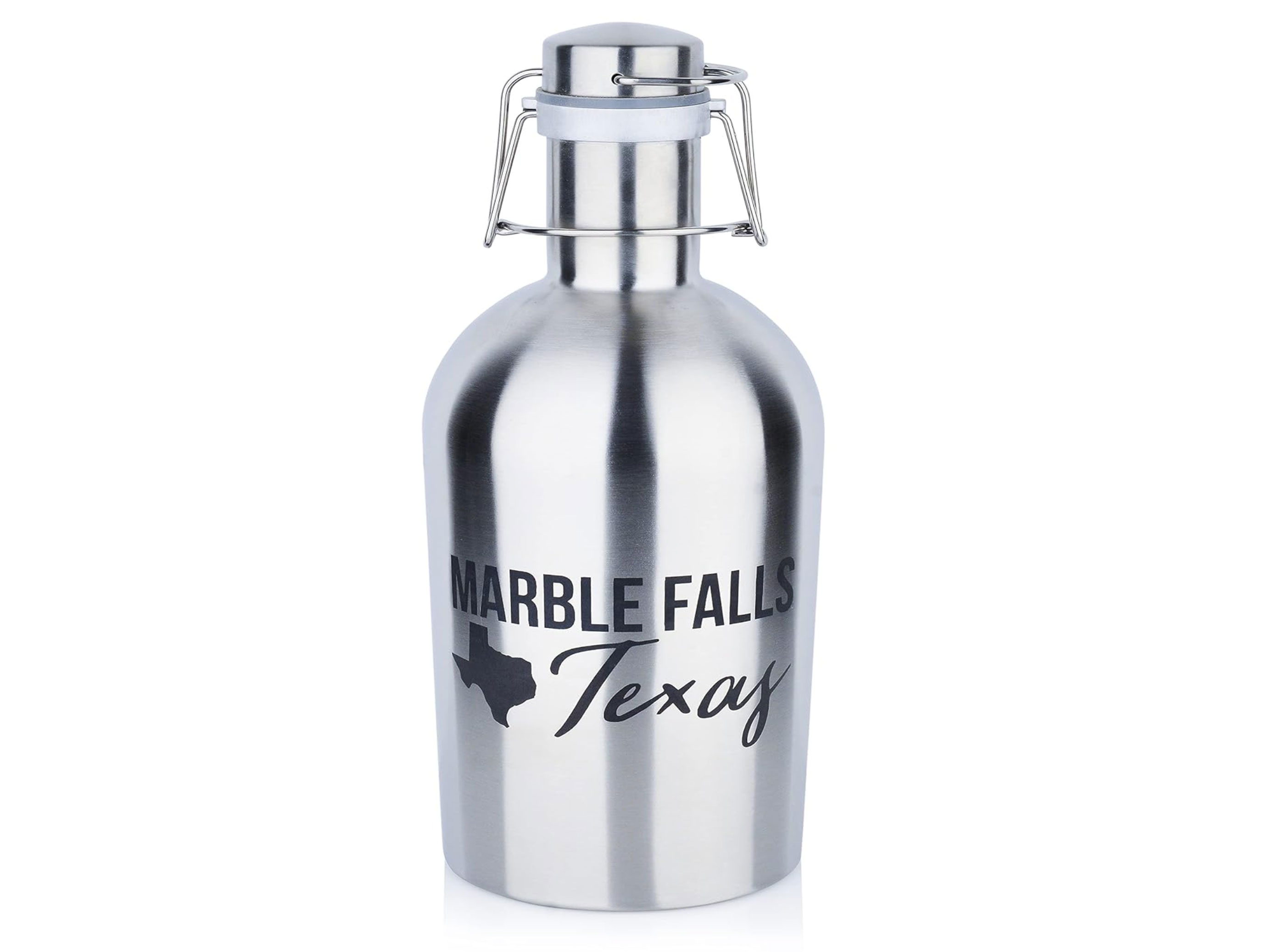

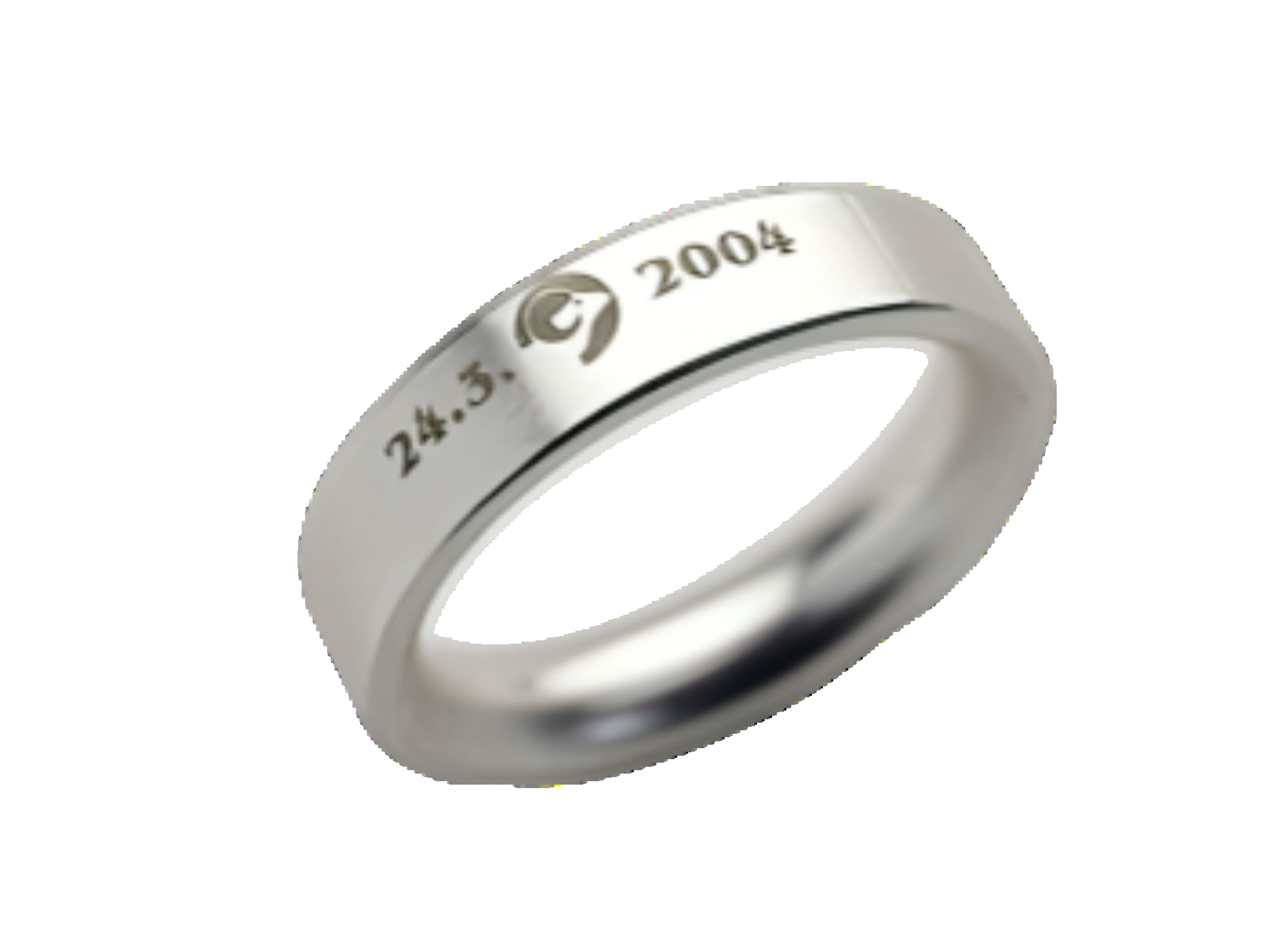

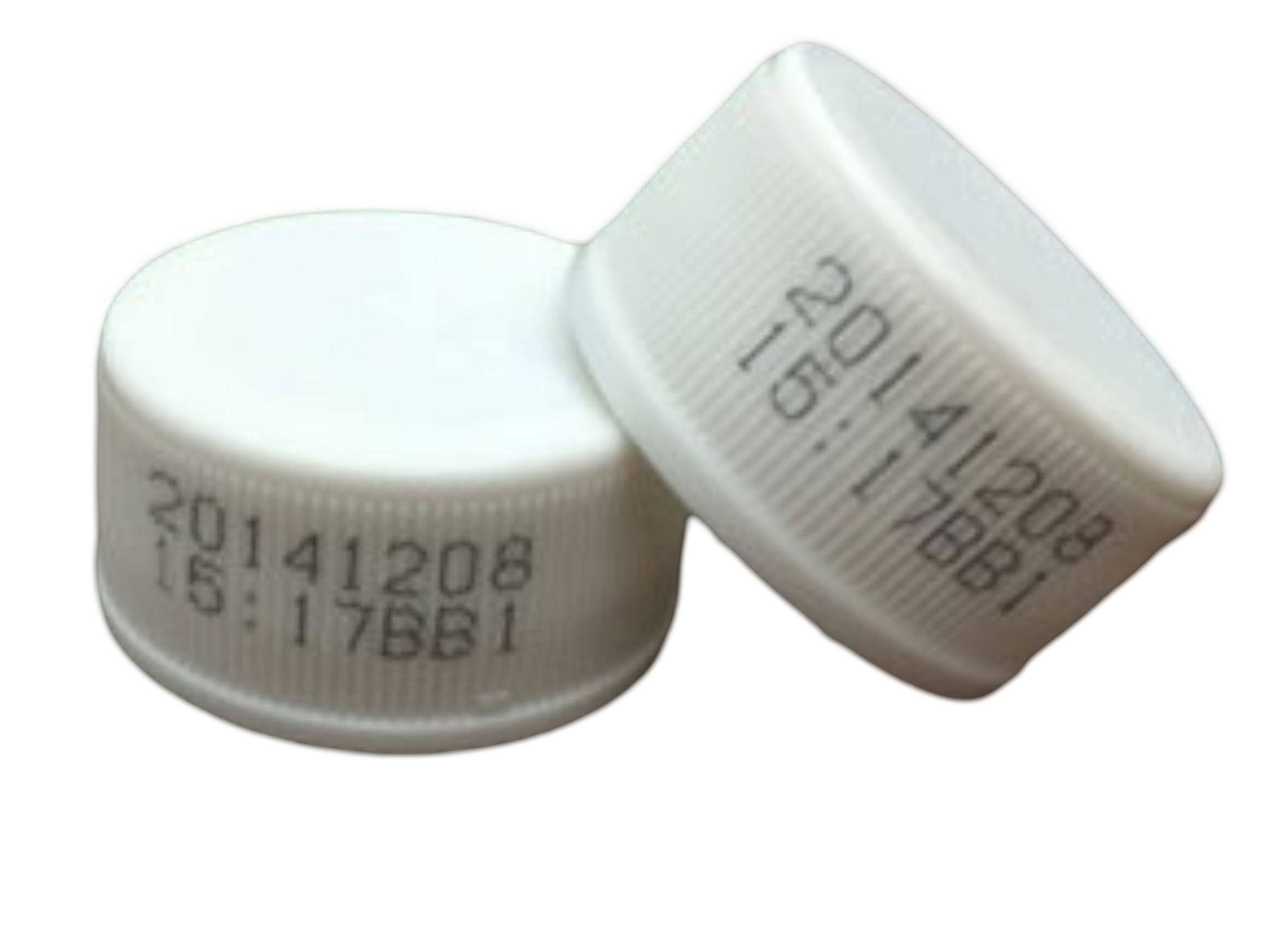

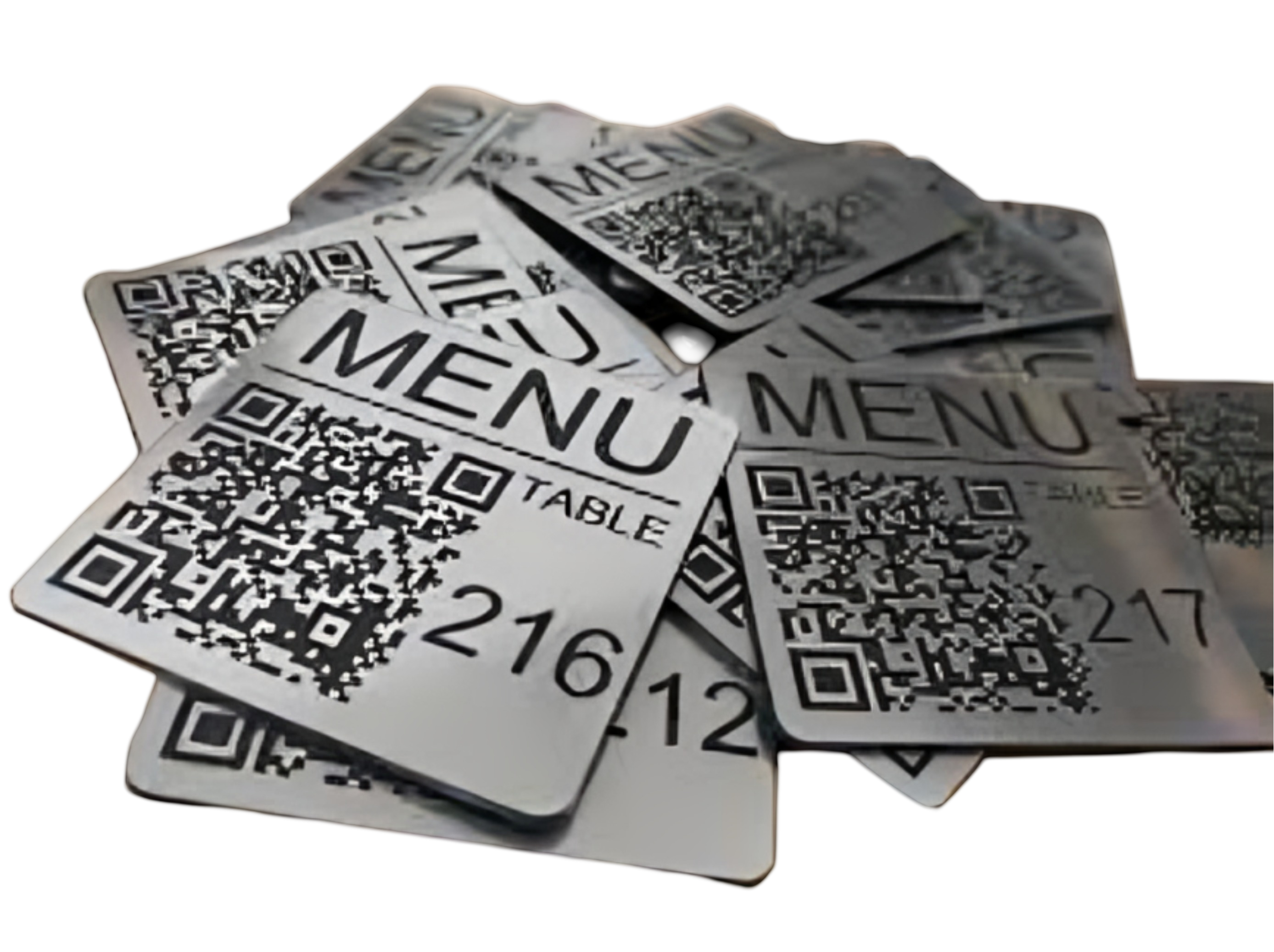

Marking Samples
