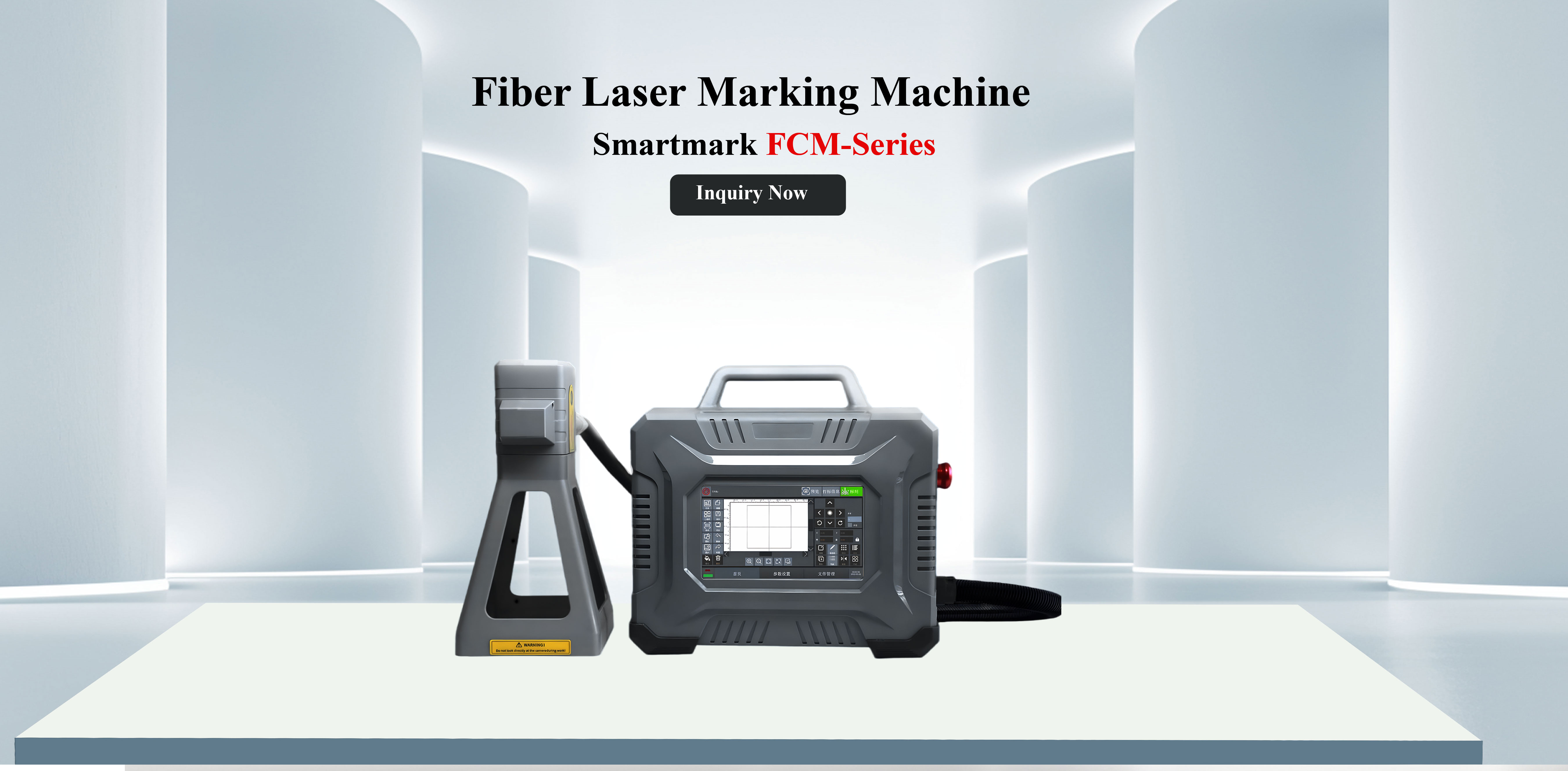

Compact Marking Machine



Portable Laser Marking Machine Advantage


  • ► Simple and Easy to operate, flexible and convenient, Small in size, simple in training and easy to operation

  • ► Can connect to mobile APP via Bluetooth and WiFi

  • ► Offline marking, equipped with lithium battery, charging time is 1.5 hours, working time is about 6-8 hours

  • ► The self-start and stop function extends the battery life of the lithium battery and the life of the laser and galvanometer motor

  • ► Multi-language input, supporting English, Thai, Spanish, Korean, French, etc., and language packs can also be added

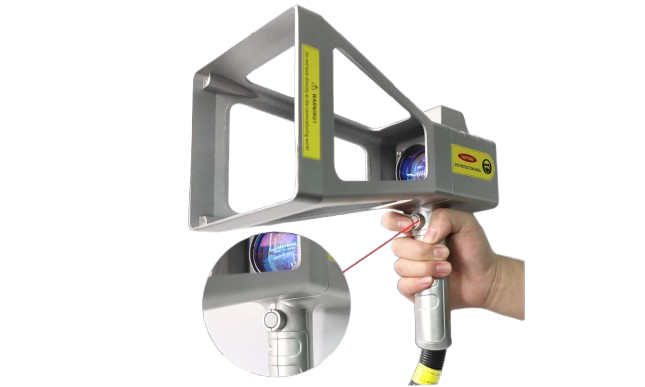

Marking head


  • Standard marking area is 100*100mm, 60*60mm and 150*150mm. There would be a cover on the lens, before marking, the cover should be taken. And there is a button on the handle, when marking, click once, a red light preview will appear, and click again after about 2s to mark.

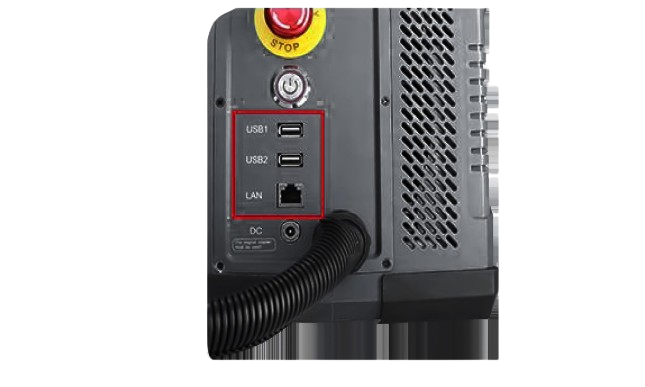

More Interfaces For Connecting External Devices


  • Configured with two USB ports and one network port, it is convenient to connect external mice, keyboards, U disks, network cables, etc. The network port can be connected to MES, erp and other systems, and can be connected to an external monitor.

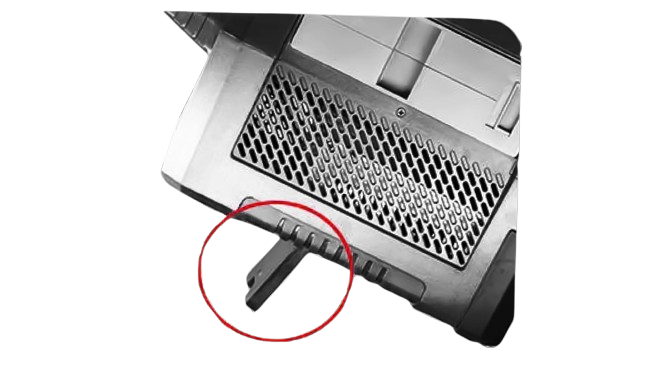

Stable Support Frame


  • ► Can be tilted back 45 to enhance back heat dissipation; More suitable for operating habits, can be supported or laid flat.

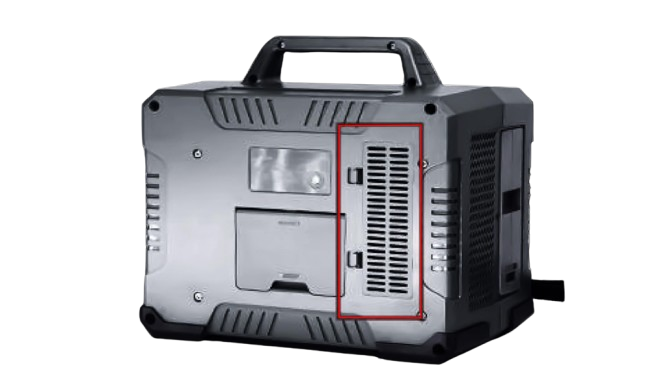

Removable Laser Dust Filter


  • Effectively avoid laser failure caused by blockage of the laser air inlet due to dust, Oil and other problems at the work site. The Filter can be removed, cleaned and replaced








Technical Parameter




Product parameter table
20W/30W/50W Portable mini fiber marking machine
Laser Type Fiber Laser Generator
Laser Laser output power 20W/25W/30W/50W
Attributes Laser wavelength 1064nm
Max pulse energy 0.7m] -1.1m]
Frequency adjustable range 1-1000 khz
Laser life 100000hours
Marking method High-precision two-dimensional scanning method
Marking speed <7000mm/s

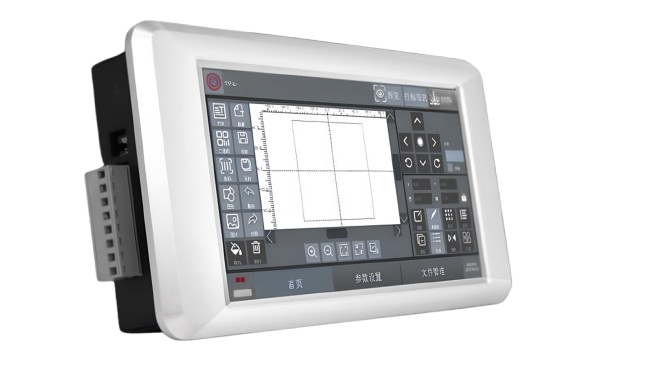

Operation interface Embedded 7 inch touch screen, intelligent operating system
Marking range 100mm*100mm (standard),60mm*60mm, 150mm*150mm(for optional)
Marking Positioning method Red light positioning
Attributes Interface language, input method support language Supports Simplified Chinese, Traditional Chinese, English, Korean, Japanese, German, Russian, Arabic, Spanish, Portuguese, French,etc.
Supported marking types QR code, Barcode, Multipecharacters, Date, Logos, Patterns, S/N, etc. Bitmap:
File format JPG/PNG/BMP; Vector illustration:DXF/SVG/PLT; Sheet:Excel
Barcode/QR code Barcode: EAN code, UPC code, PDF417 code and CODE standard code; QR code:
Supported marking materials Iron, aluminum, copper metal, stainless steel, PVC/PP/PB/ABS/polymer plastic,
Cooling method Air Cooling
Power supply AC 90V-240V, 50/60Hz
Electrical Maximum power consumption 20W:120W/30W 150W/50W:200W
Properties Continuous working time withfull power 4-6 hours
Charging time 1.5 hours
Lithium battery specifications 24V/15AH, supports 500 charges and discharges
Electrical properties Environmentally friendly engineering plastics
Net weight Electric model:6KGS; battery model: 8KGS
Whole Working temperature 0-40°C
Machine Working environment humidity 30-85% RH (no condensation)
Attributes Whole dimensions 330mm*280mm*220mm
Handheld head specifications Handle diameter 35-41mm, net weight of handheld head 0.7-1.1kg
