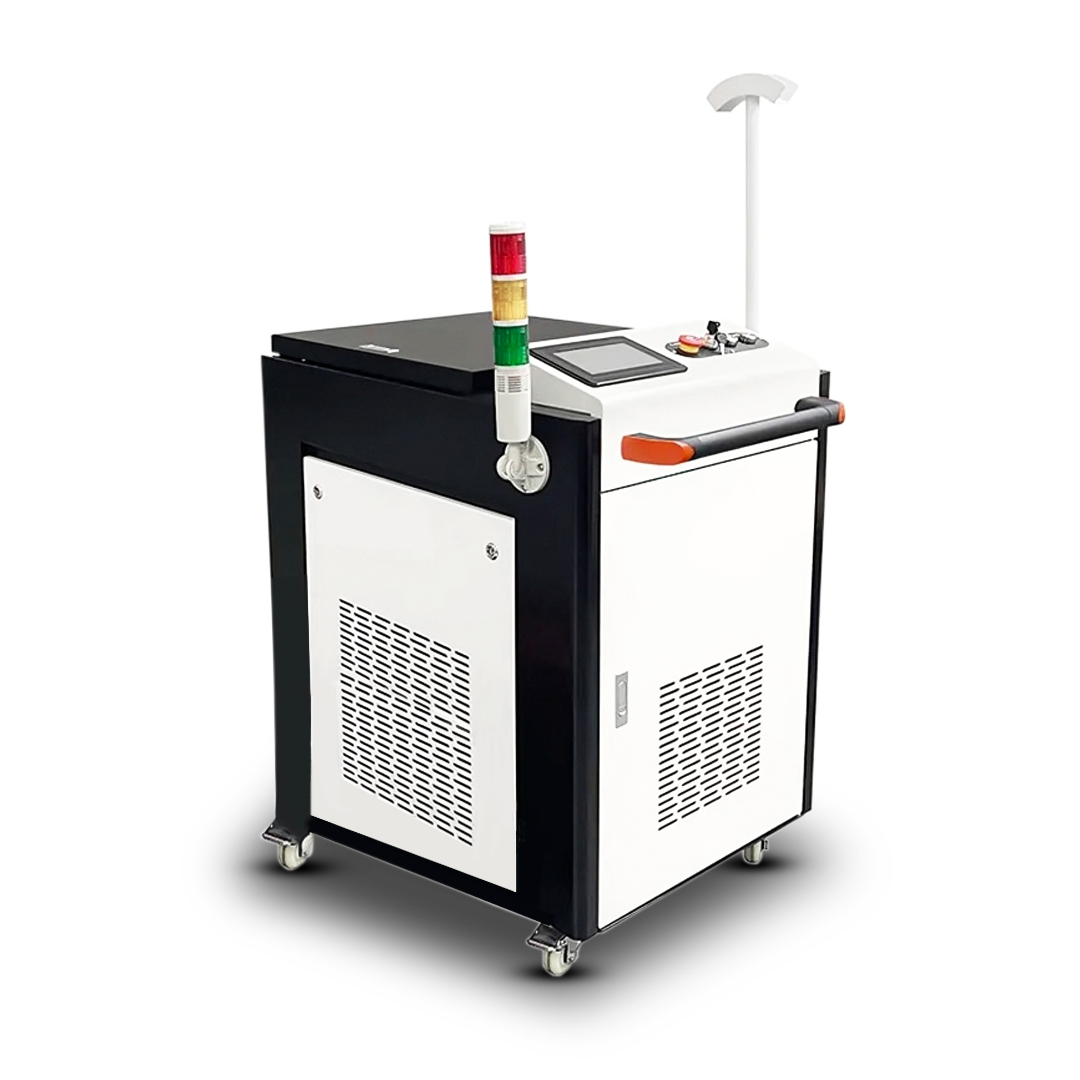

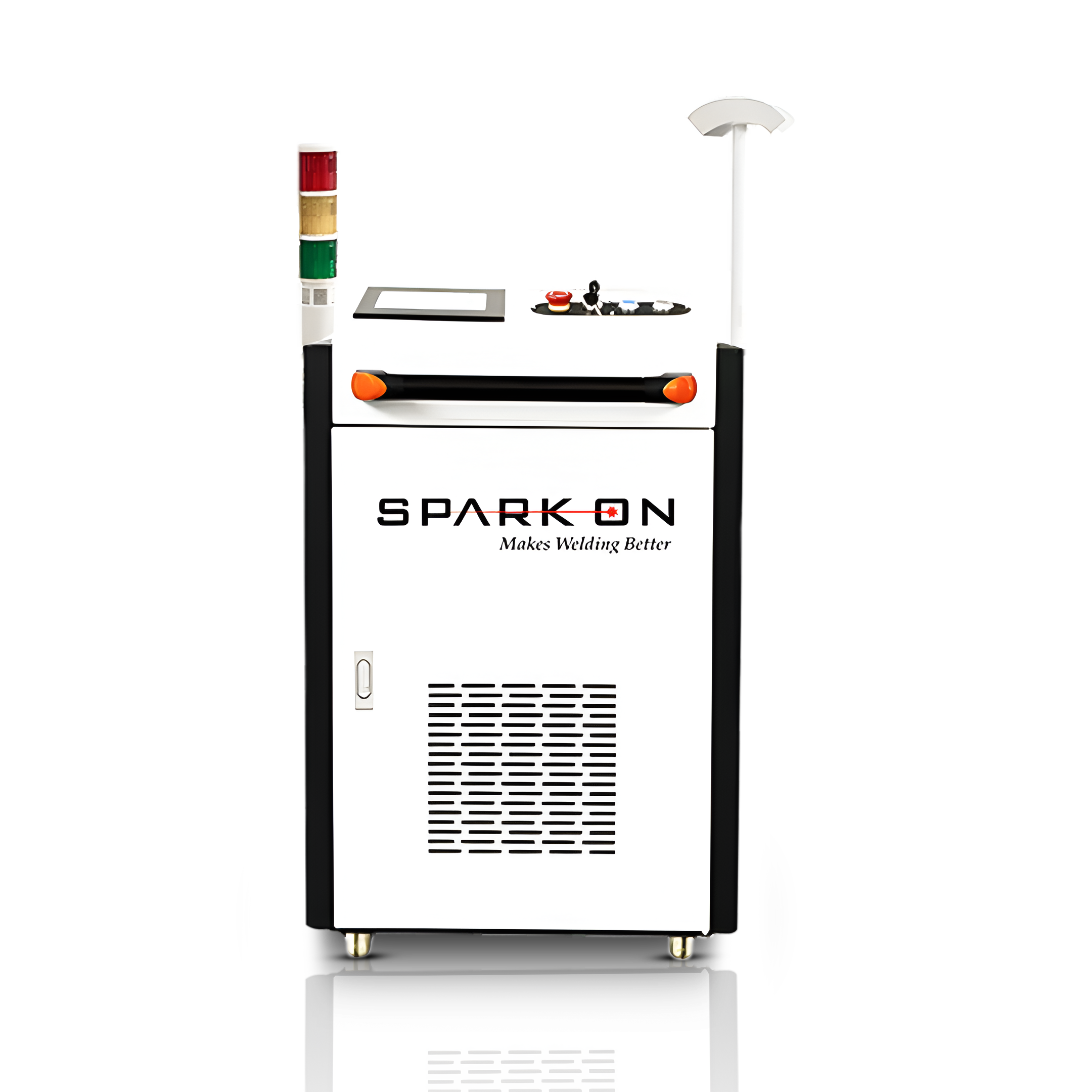

Handheld Fiber Laser Welding Machine









Laser Welding Head

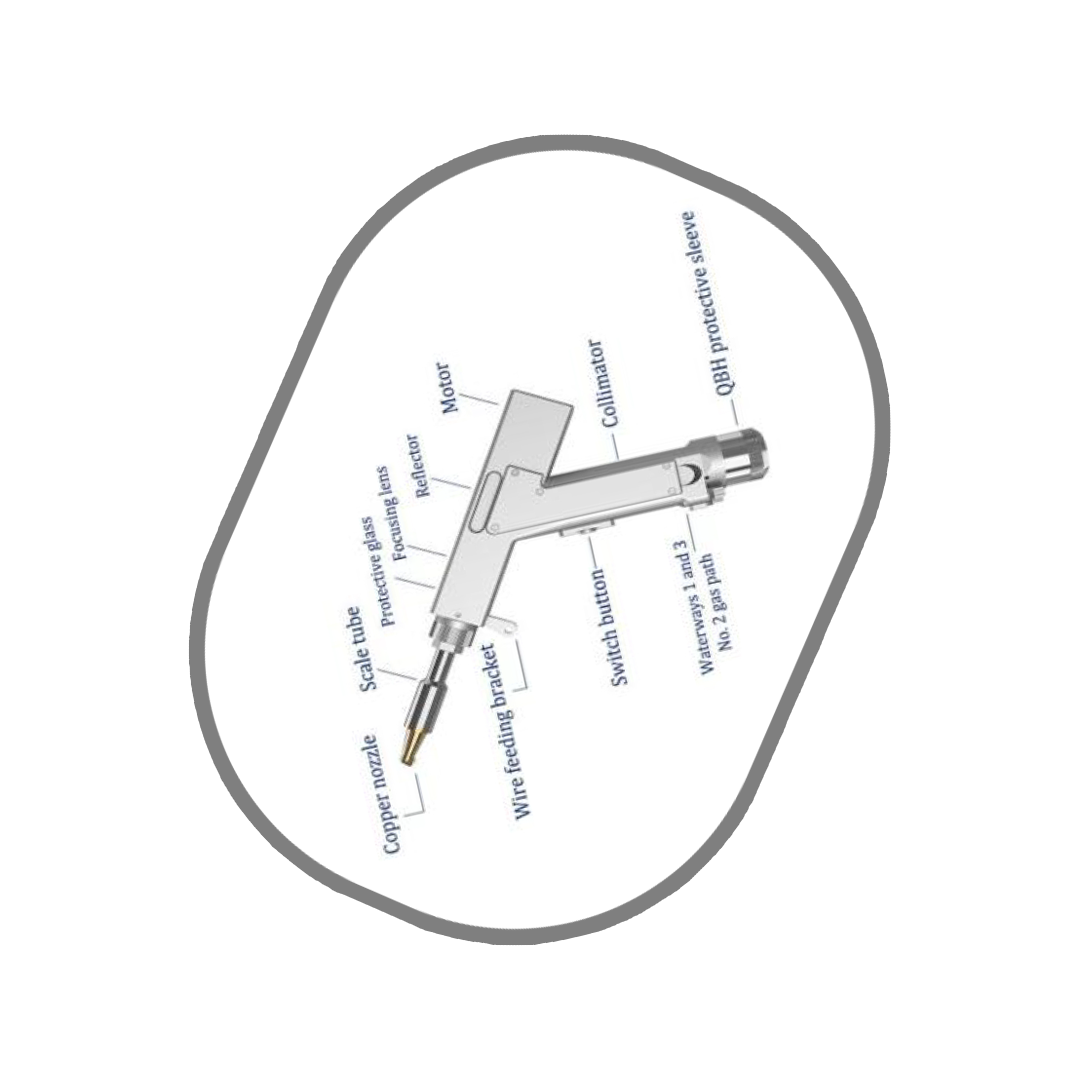

SUP brand: 1.26kg

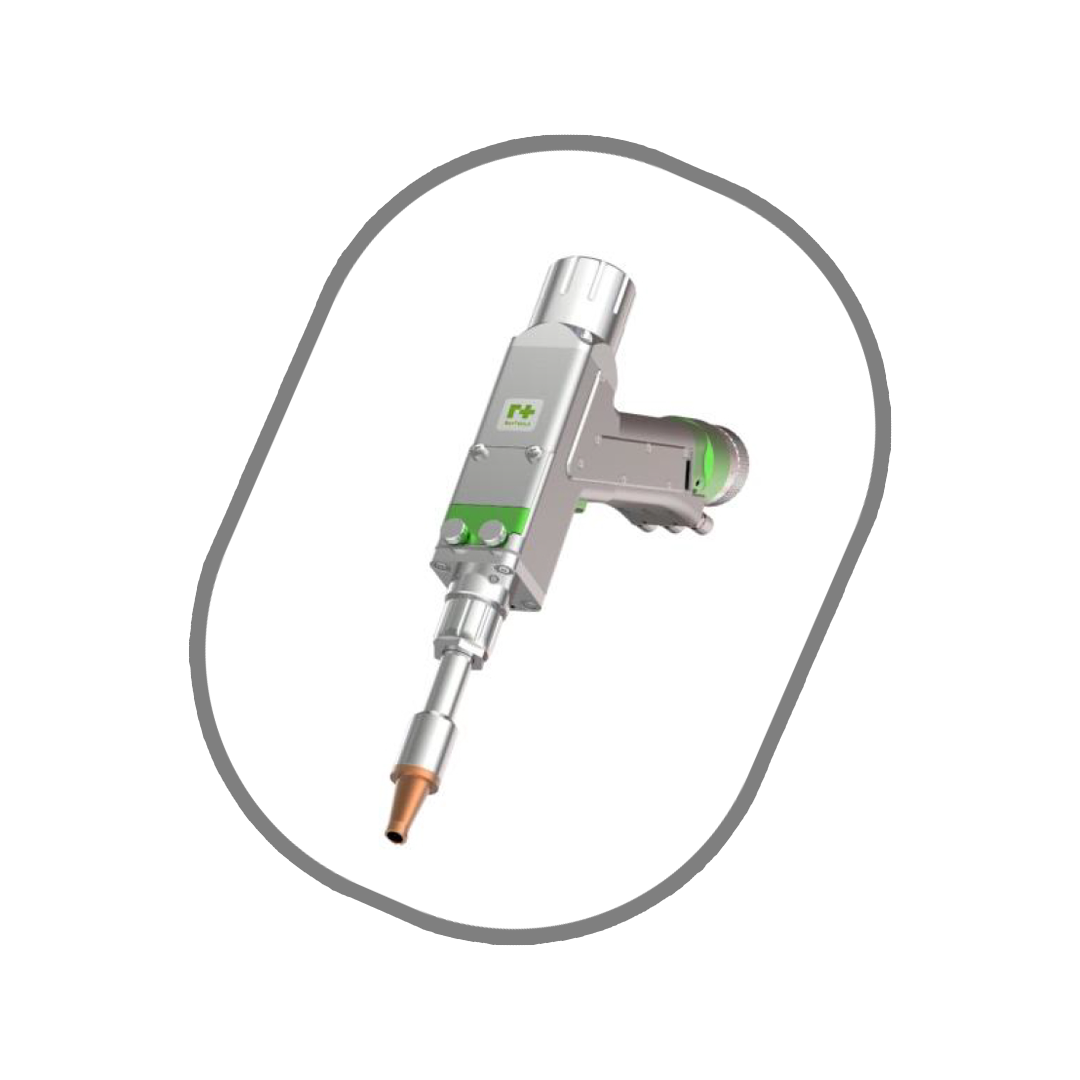

Raytool brand: 1kg

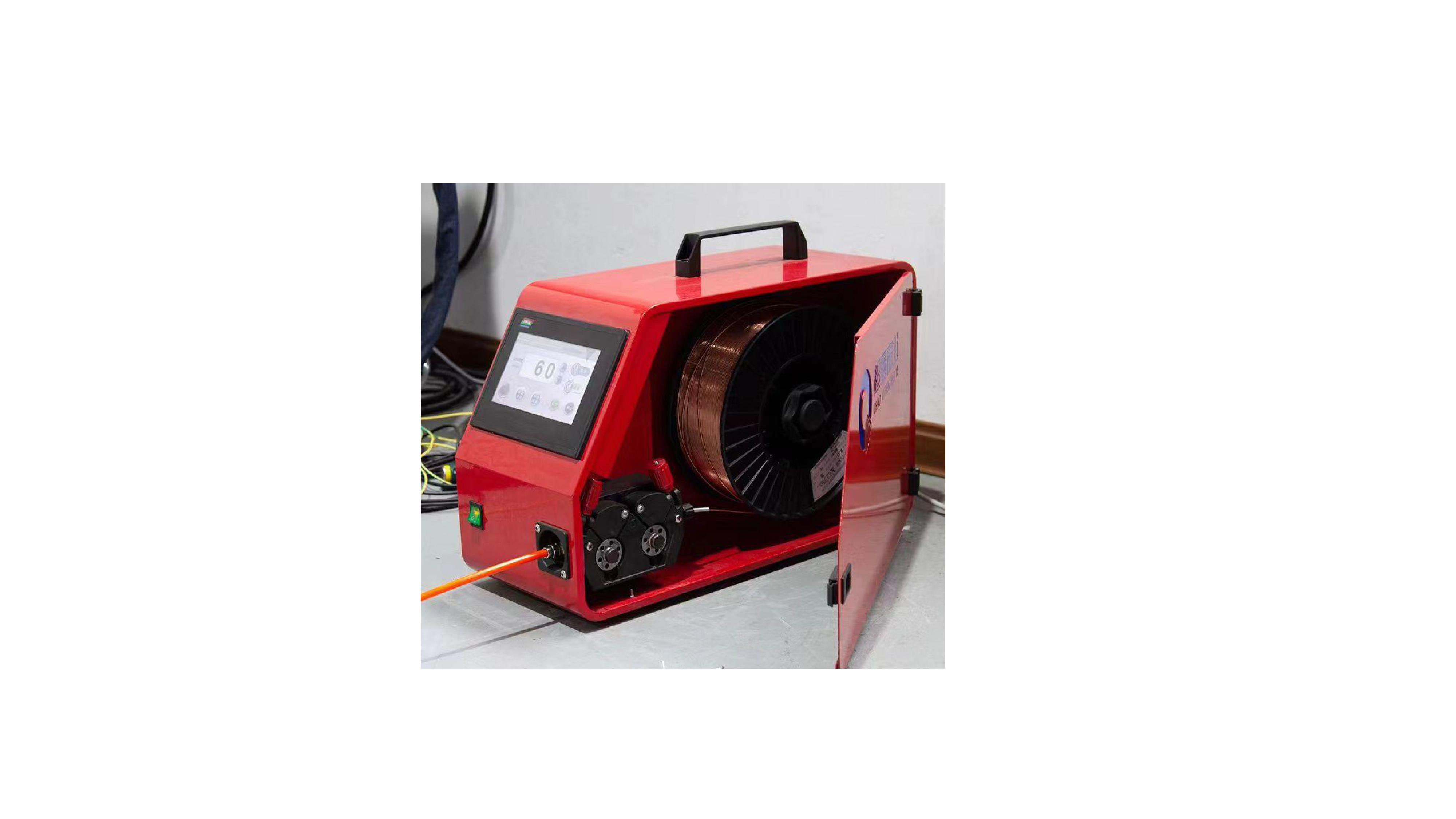

Feeding Device


    This feeding system have stable feeding function, with strong anti-jamming.


    1-2kw usually feeding 0.8mm,1.0mm, 1.2mm wire.


    3kw usually feeding 1.0mm, 1.2mm,1.6mm,2.0mm wire.


    Single/dual wire feeder optional.

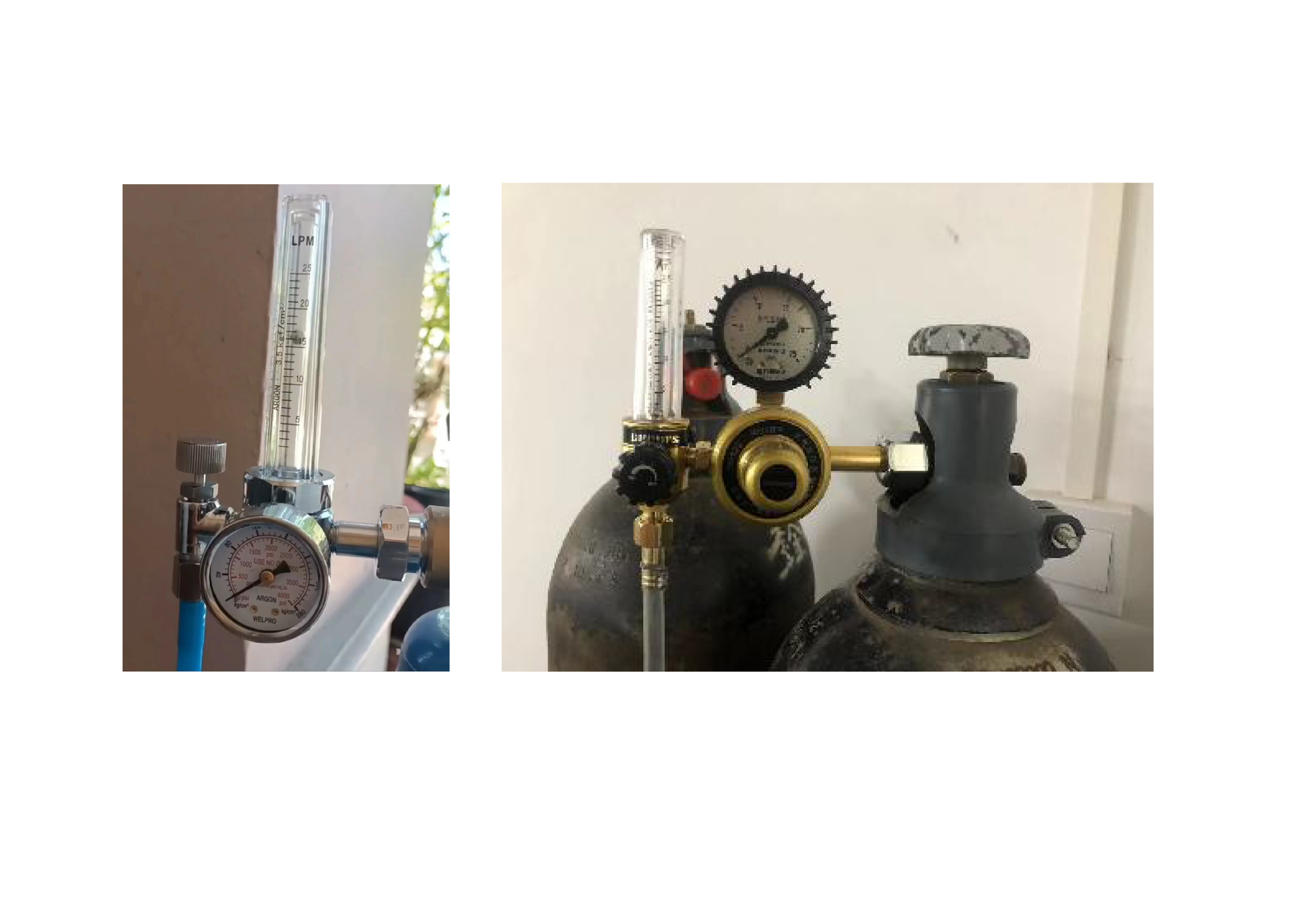

Gas : Argon Is The Best Choice

It needs to be equipped with an argon meter,and the air pressure During welding is about 5-6bar (0.5-0.6mpa)

Technical Parameter



Fiber Laser Welding Machine
Laser Type Fiber Laser
Center Wavelength 1064nm ± 10
Max Output Energy 1kw / 1.5kw / 2kw / 3kw
Modulation Frequency 1-20,000 Hz
Red Light Indicates Output Power 0.5–1mm
Fiber Cable Length 1kw/1.5kw/2kw is 10m, 3kw is 20m
Fiber Core Diameter 50m
Total Power Consumption N/A
Power Required For (1kw/1.5kw/2kw) 7.5kw/10hp (1kw Laser Source)
9kw/12hp (1.5kw Laser Source)
12kw/16hp (2kw Laser Source)
Power Required For (3kw) 15kw/20hp
Cooling Method Water Cooling
Voltage Single Phase 220V ± 10% V AC, 50/60Hz
Three Phase 380V ± 20% V AC, 50/60Hz
Gross Weight / Net Weight 230kg (GW) / 180kg (NW)
Machine Dimensions (L*W*H) 850*650*1035mm
Packing Dimensions (L*W*H) 1290*780*1190mm
Materials Power Welding Maximum Penetration (with wire feeding) Maximum Weldable Thickness (with wire feeding)
SS (Stainless) 1000w 3mm 4mm
1500w 5mm 6mm
2000w 6mm 8mm
3000w 8mm 10mm
CS/ MS/ Iron 1000w 3mm 4mm
1500w 6mm 7mm
2000w 8mm 9mm
3000w 9mm 12mm
Aluminum/Brass 1000w 2mm 3mm
1500w 4mm 5mm
2000w 6mm 7mm
3000w 8mm 9mm
Galvanized 1000w 2mm 3mm
1500w 4mm 5mm
2000w 6mm 7mm
3000w 7mm 8mm
